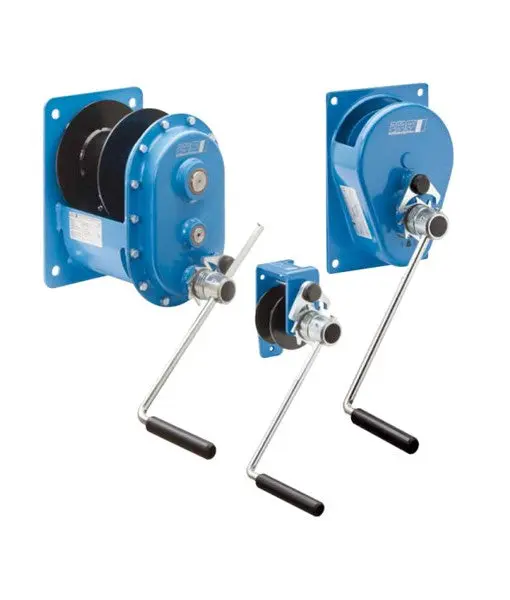

Pfaff MWS Wall Mounted Wire Rope Winch
Pfaff Silberblau MWS (formerley Yale MWS) Hand Operated Wire Rope Winches are very high quality hand winches with spur gear drives. Featuring a compact design, the MWS is wall mountable and easily attached to poles and towers etc.
- Enclosed gear drive for protection of internal parts, even under tough working conditions.
- Spur gears on roller bearings, rope drum on plain bearings.
- Very compact design and easy quick mounting onto walls, poles, towers etc.
- Load pressure brake.
| Model | Lifting/Pulling Cap. 1st Layer daN |
Lifting/Pulling Cap. Last Layer daN |
Crank Effort 1st Rope Layer daN |
Ratio | Recomm. rope diameter mm |
Minimum Breaking Load of Wire Rope kN |
Useable Rope Length Max. Mtr |
Number of Rope Layers Max | Weight Without Wire Rope Kg |
| MWS150 | 150 | 68 | 11 | 1:1 | 4 | 5.7 | 13 | 8 | 4 |
| MWS300 | 300 | 166 | 6 | 1:7.4 | 5 | 15.9 | 21 | 7 | 10 |
| MWS500 | 500 | 308 | 10 | 1:7.4 | 6 | 22.9 | 12 | 6 | 11 |
| MWS1000 | 1000 | 567 | 11 | 1:17 | 9 | 51 | 25 | 5 | 27 |
| MWS1500 | 1500 | 844 | 12 | 1:25.7 | 10 | 63 | 21 | 5 | 28 |
